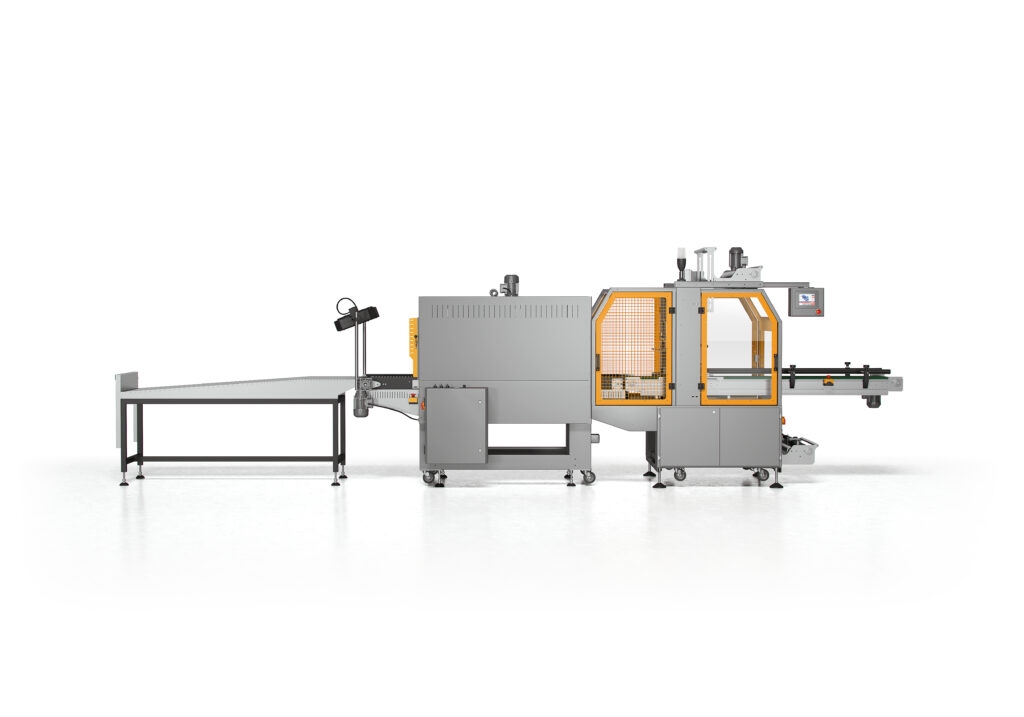

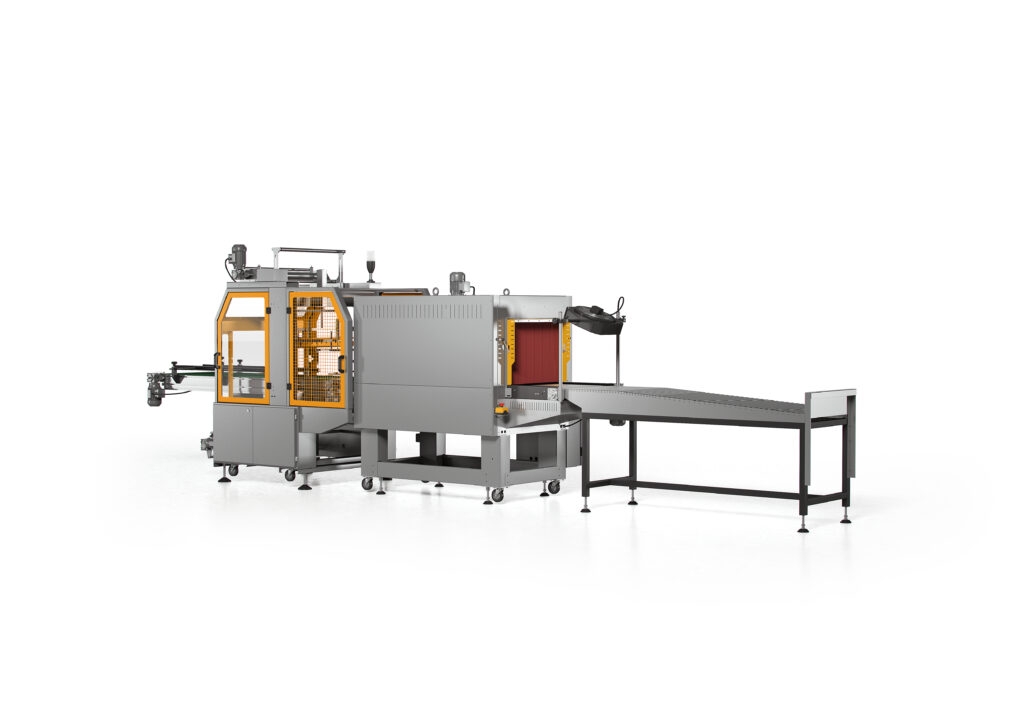

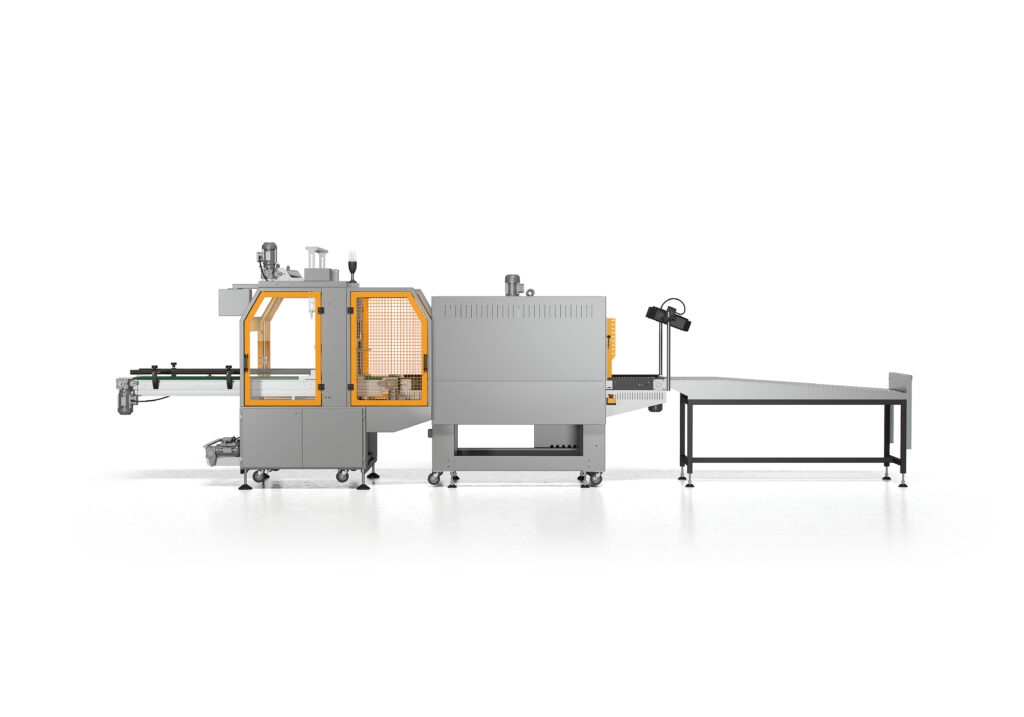

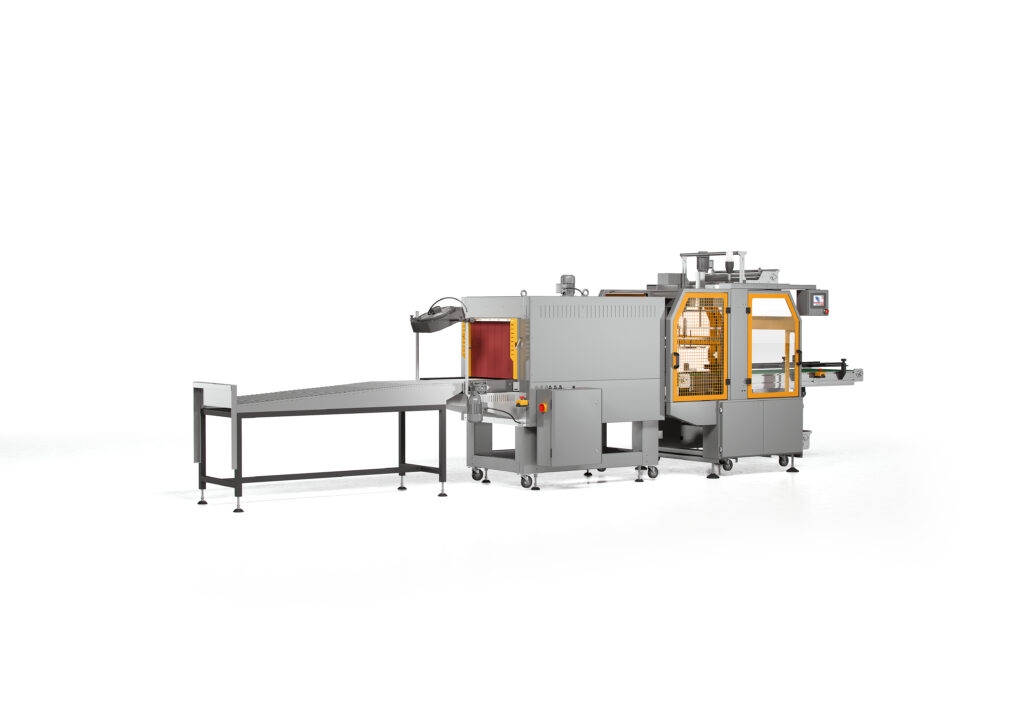

DM 782 OB Series

Application Areas

Used for packaging items arranged in trays (beverages, jars, cans, etc.), single boxes, batteries, cables, furniture, radiators, etc.

Working Principle

Wraps products fed manually or from the line onto the feed conveyor with polyethylene film and sends them to the tunnel for shrink packaging.

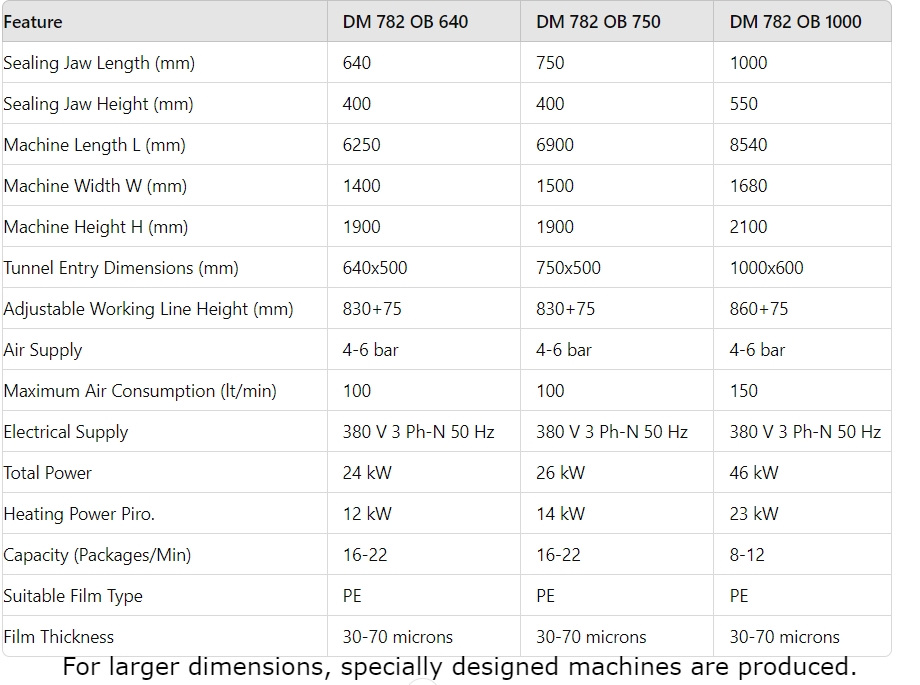

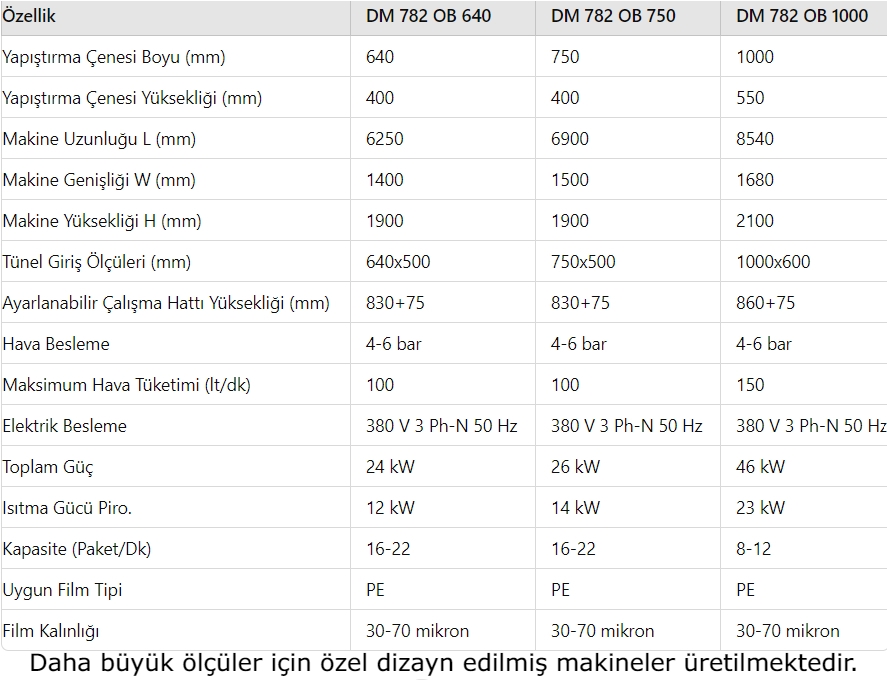

Technical Specifications

• Cutting and Sealing Unit
• Front Feeding System
• Package Counter
• Pneumatic System
• Motor Controlled Bottom and Top Film Unwinding
• PLC Controlled
• User-Friendly Color Touch Screen
• Rapid Cutting and Sealing Feature (0.3-1 sec)
• Odorless and Smokeless Operation
• Optional Movable Exit Conveyor
• Shrink Tunnel
• Thermostat Controlled Operating Temperature
• Tunnel Conveyor with Speed Control, Heat-Resistant Silicone Hose Coated Rod or Mesh Belt
• Easily Replaceable Cr-Ni Resistance System
• Hot Air Direction System
• Cooling Fan at Tunnel Exit
• Tunnel Conveyor Operable During Power Outages (Optional)
